HPWH Explained: Everything You Need to Know About Heat Pump Water Heaters

Why HPWH Technology is Revolutionizing Water Heating

HPWH stands for Heat Pump Water Heater, a technology that's 2-3 times more energy efficient than conventional electric models. Also known as hybrid electric water heaters, they work like a refrigerator in reverse, moving heat from the surrounding air into your water tank instead of creating it directly.

Quick HPWH Facts:

• Efficiency: Up to 4.1 times more efficient (UEF of 3.7 vs 0.9 for standard electric)
• Savings: Up to $3,750 over 10 years compared to conventional electric heaters
• Requirements: 1,000 cubic feet of air space, 40-90°F ambient temperature
• Bonus: Dehumidifies and cools the installation space
• Lifespan: Can last up to 10 years longer than traditional heaters

For Bay Area homeowners looking to cut energy bills and reduce their environmental impact, HPWHs are one of the smartest upgrades available. They use electricity to move heat rather than generate it, which is the key to their incredible efficiency.

The technology works by extracting heat from ambient air. This means your HPWH can produce hot water while simultaneously cooling and dehumidifying spaces like garages or basements.

Most modern HPWHs are hybrid systems, meaning they have backup electric resistance elements for high-demand situations. This ensures you never run out of hot water, even during peak usage times.

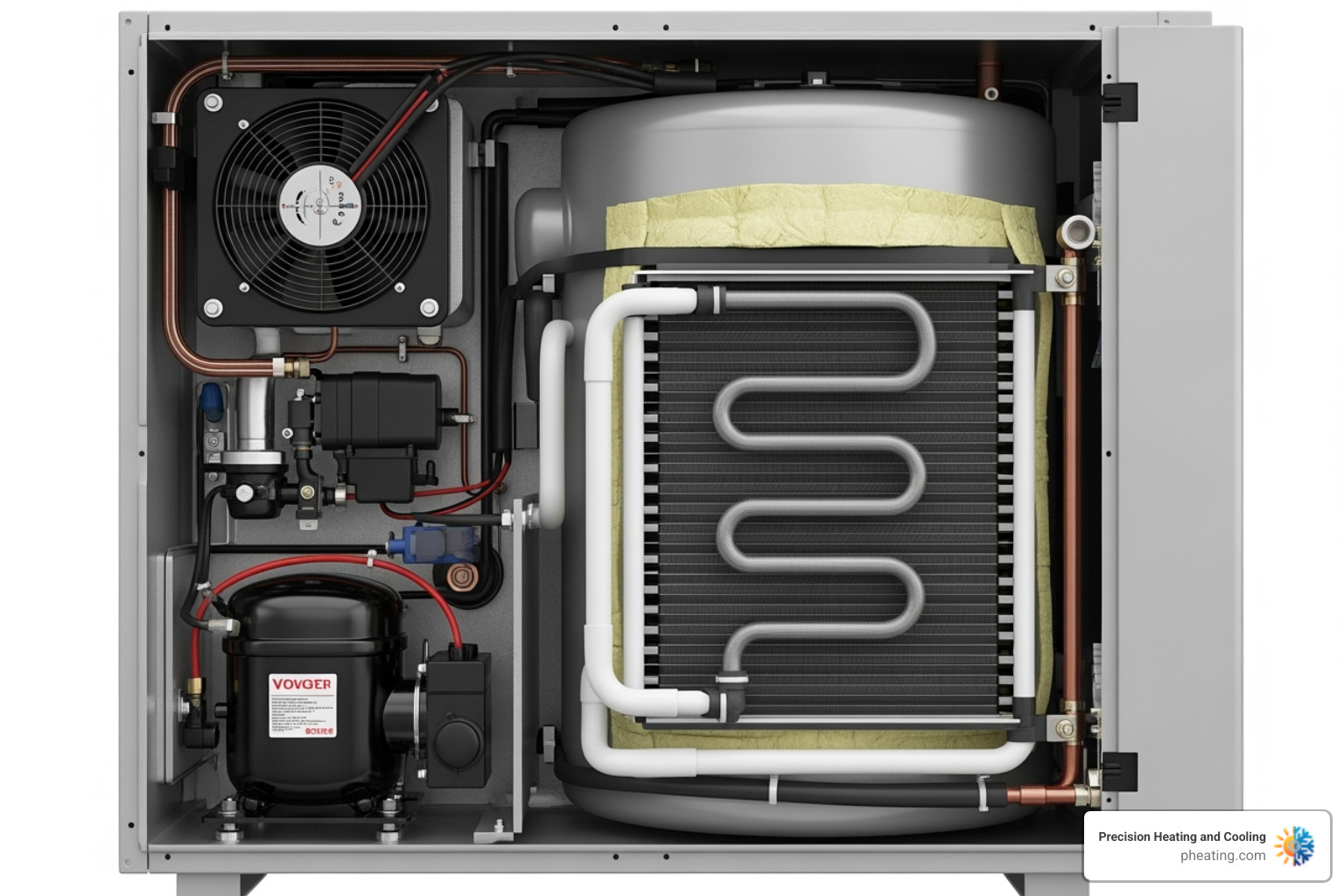

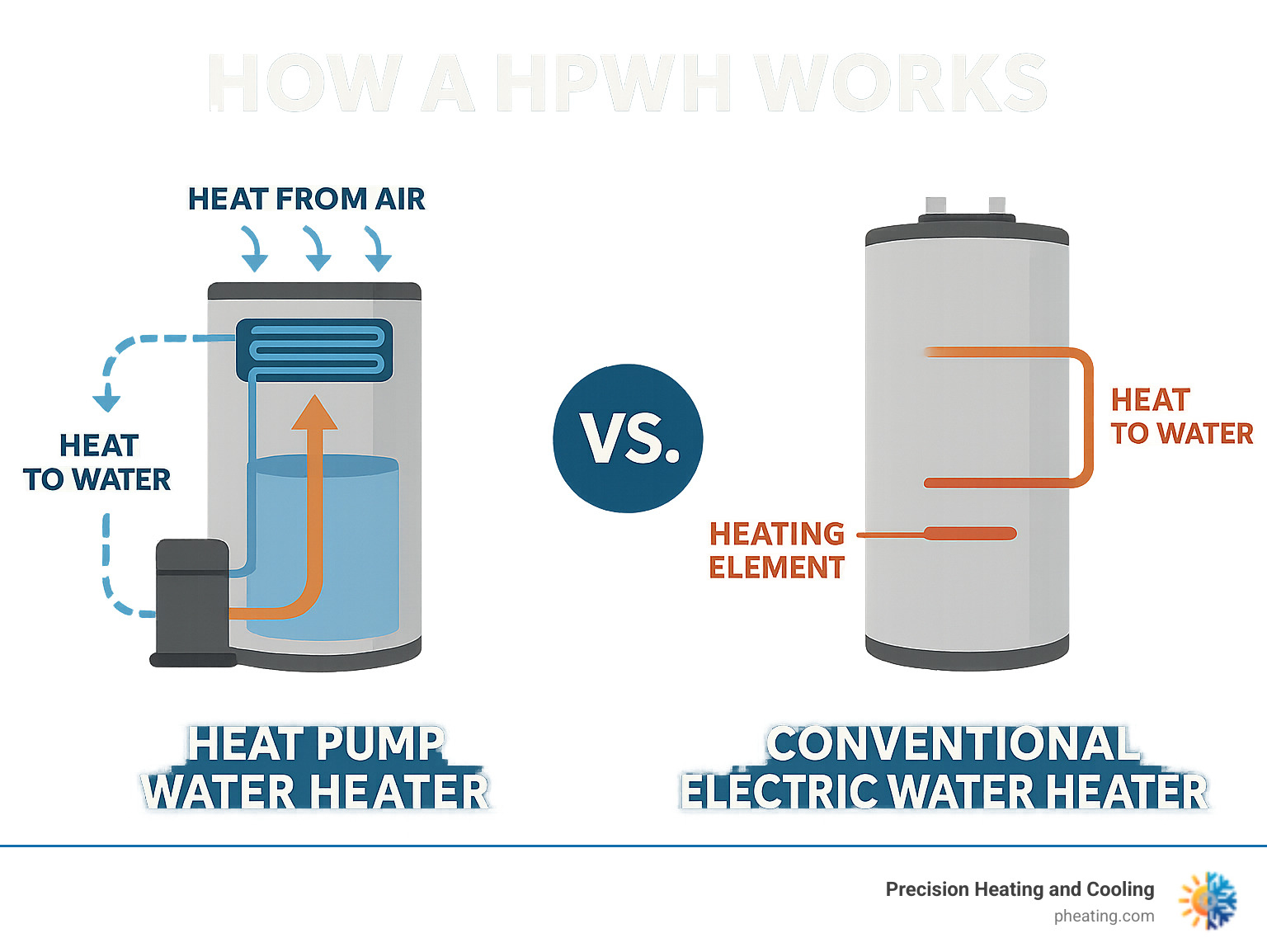

How a Heat Pump Water Heater Works: The Science of Efficiency

An HPWH works like a refrigerator in reverse. Instead of pulling heat out of an insulated box, it pulls heat from the surrounding air and transfers it into the water tank. This process is highly efficient because moving heat requires far less energy than creating it from scratch.

Here's a step-by-step look at the process in your HPWH:

A fan pulls ambient air from your garage, basement, or utility room across an evaporator coil containing a liquid refrigerant. The refrigerant absorbs warmth from the air and turns into a gas.

The compressor then pressurizes this gas, significantly increasing its temperature. This is the primary energy-consuming step.

This super-heated gas flows through a condenser coil wrapped around the water tank, transferring its heat to the stored water. As it cools, the refrigerant turns back into a liquid to repeat the cycle.

Thanks to this efficient heat transfer, for every unit of electricity an HPWH uses, it can move two to four units of heat energy into your water. In contrast, traditional electric heaters have a one-to-one conversion rate.

This efficiency is measured by the Uniform Energy Factor (UEF). A higher UEF means lower bills. While standard electric water heaters have a UEF around 0.9, Energy Star certification requires HPWHs to have a UEF of at least 2.0, with top models exceeding 4.0!

Most HPWHs are hybrid systems with backup electric resistance elements. These activate when you need hot water fast or when the air temperature is too low for the heat pump to work efficiently, ensuring you always have hot water.

Want to see these savings in action? Check out this helpful video: Watch "ENERGY STAR Water Heaters Mean BIG Savings!".

The Major Benefits of an HPWH System

Choosing a heat pump water heater is a smart investment that pays dividends for years. For Bay Area homeowners, these systems can be transformative.

The most immediate benefit is dramatic energy savings, leading to lower utility bills. An ENERGY STAR certified HPWH can save a household up to $3,750 over 10 years compared to a standard electric model, with some of our customers saving up to $576 annually.

Beyond your wallet, an HPWH is a step toward environmental sustainability. By using less electricity, these systems significantly reduce your carbon footprint. As California's grid incorporates more renewables, the environmental case for efficient electric appliances like HPWHs grows even stronger.

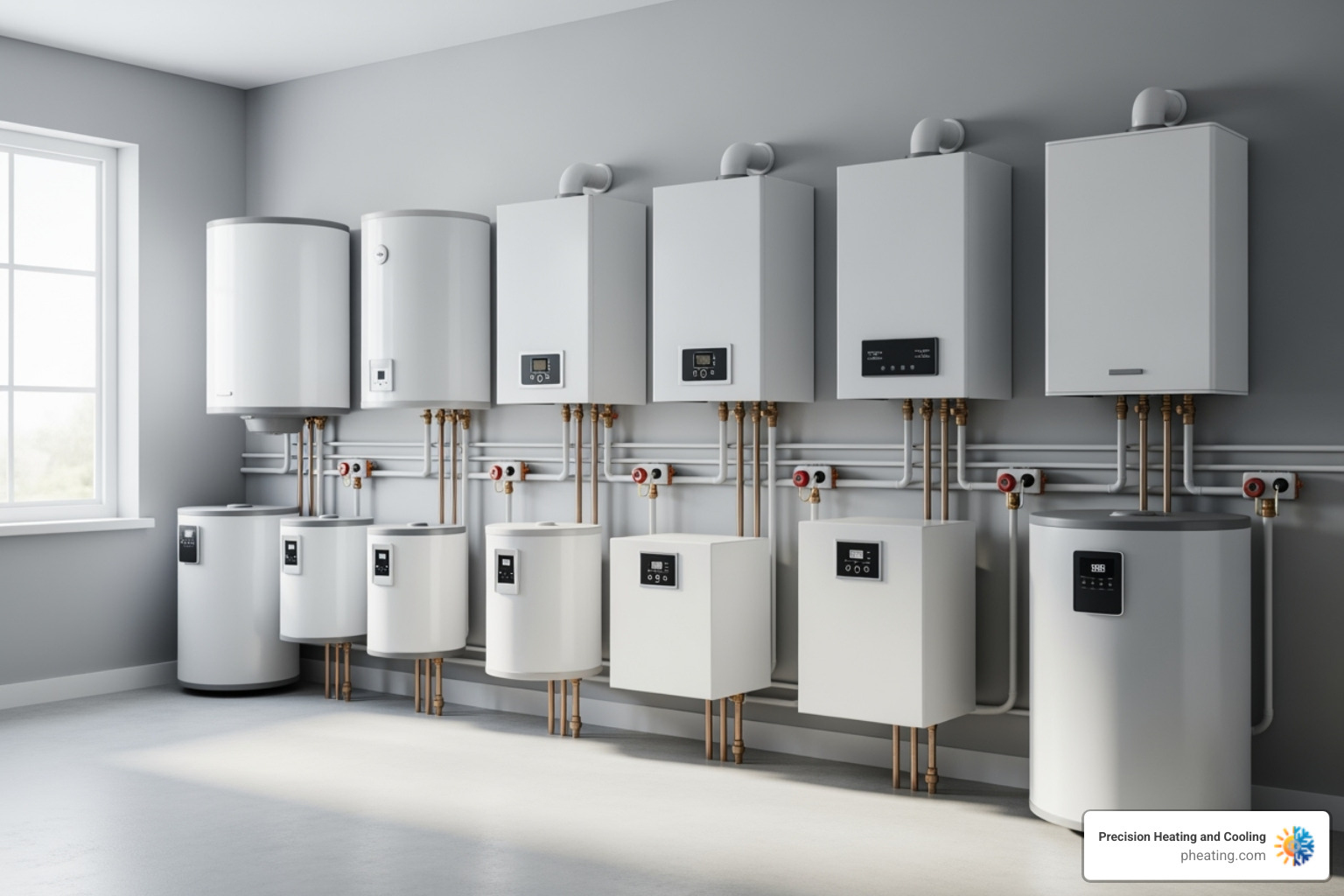

Here's how different water heating options stack up:

An unexpected bonus is the dehumidification and cooling effect. Your HPWH removes moisture from the air, which is ideal for damp basements or garages. It also slightly cools the installation space, a welcome benefit during hot Central Valley summers.

Safety is another key advantage. Unlike gas water heaters, HPWH systems have no combustion, eliminating risks of gas leaks or carbon monoxide.

Financial Advantages and Payback Period

While an HPWH has a higher upfront cost than a conventional water heater, the long-term savings make it a smart home upgrade. The efficiency of ENERGY STAR units means your energy bills drop from day one. These savings compound over the system's long lifespan, often paying for the initial investment within a few years.

Government incentives and tax credits make this investment even smarter. Federal and local utility programs are available to homeowners in the Bay Area and Central Valley, designed to make clean energy more affordable. These incentives can significantly reduce upfront costs and shorten the payback period.

Don't leave money on the table – check what local rebates might be available in your area: Find local rebates for your new water heater.

Environmental Impact

Every HPWH installation is a vote for a cleaner future. The system's efficiency dramatically reduces greenhouse gas emissions. As California's grid gets cleaner, the environmental benefits of all-electric appliances like HPWHs increase.

Modern HPWHs also use lower Global Warming Potential (GWP) refrigerants, like R-744 (CO₂), which have minimal environmental impact, making them a truly sustainable solution. Choosing an HPWH is often part of creating an all-electric home, a trend that eliminates fossil fuel dependence and leads to cleaner air.

Curious about how electric appliances impact overall emissions? This helpful tool provides detailed insights: Learn about the emissions of electric appliances.

Key Considerations Before You Buy

Choosing the right heat pump water heater for your home is crucial for performance. For Bay Area families, considering a few key factors upfront saves headaches down the road.

The most crucial decision is sizing your HPWH correctly to meet your family's hot water needs without wasting energy.

We look at two key numbers: Tank capacity (how much hot water is stored, typically 40-80 gallons) and the First-Hour Rating (FHR) (how many gallons of hot water the unit can deliver in one hour of peak use).

Your household size and routines are key. A couple might be fine with a 40-gallon unit, while a family of five will likely need a 65 or 80-gallon model to avoid cold showers during peak usage.

Modern HPWH systems include convenient smart features. Wi-Fi connectivity allows you to control your water heater from a smartphone app, letting you adjust temperatures or set a vacation mode to save energy. Many units also feature leak detection to prevent water damage and provide detailed energy usage reports. Some are even demand response ready, allowing them to work with your utility to balance the grid.

If an HPWH doesn't seem like the perfect fit for your specific situation, don't worry – there are other efficient options worth exploring: Explore other efficient options like tankless water heater installation.

Choosing the Right Location for Your HPWH

Finding the right spot for your HPWH is critical for efficiency. The unit needs to "breathe" to work properly.

The golden rule is to provide at least 1,000 cubic feet of air space around the unit. This ensures the heat pump has enough air to draw from without overly cooling its immediate surroundings, which would reduce efficiency.

Temperature is also crucial. An HPWH works best in ambient temperatures between 40°F and 90°F, making unconditioned spaces like a garage, basement, or large utility room ideal.

That cooling and dehumidifying effect we mentioned can be a great side benefit. A hot garage becomes more comfortable, and a damp basement gets dried out.

Some installations may benefit from ducting options to direct the cool air or if the space is tight. You'll also need to plan for condensate drain management, which may require a floor drain, sink, or a condensate pump.

Performance in Different Climates

A common question is whether an HPWH works effectively in colder climates. The answer is yes, thanks to their hybrid design.

HPWH systems are hybrid units. When the air is too cold for the heat pump to work efficiently (typically below 40°F), the system automatically switches to its backup electric resistance elements. This ensures you always have hot water, though it temporarily uses more energy.

In a cold climate, the unit will rely more on its electric resistance backup, reducing some energy savings. However, in the Bay Area's mild climate, the heat pump mode will operate most of the year, ensuring significant annual savings.

The beauty of hybrid mode operation is that it's automatic. The system manages itself to maintain your desired water temperature in the most efficient way possible.

If you want to get specific about how an HPWH would perform in your exact situation, we recommend using this helpful resource: Use this installation tool to guide your decision.

Installation, Maintenance, and Common Concerns

Proper installation and routine maintenance are key to maximizing your HPWH's performance and lifespan.

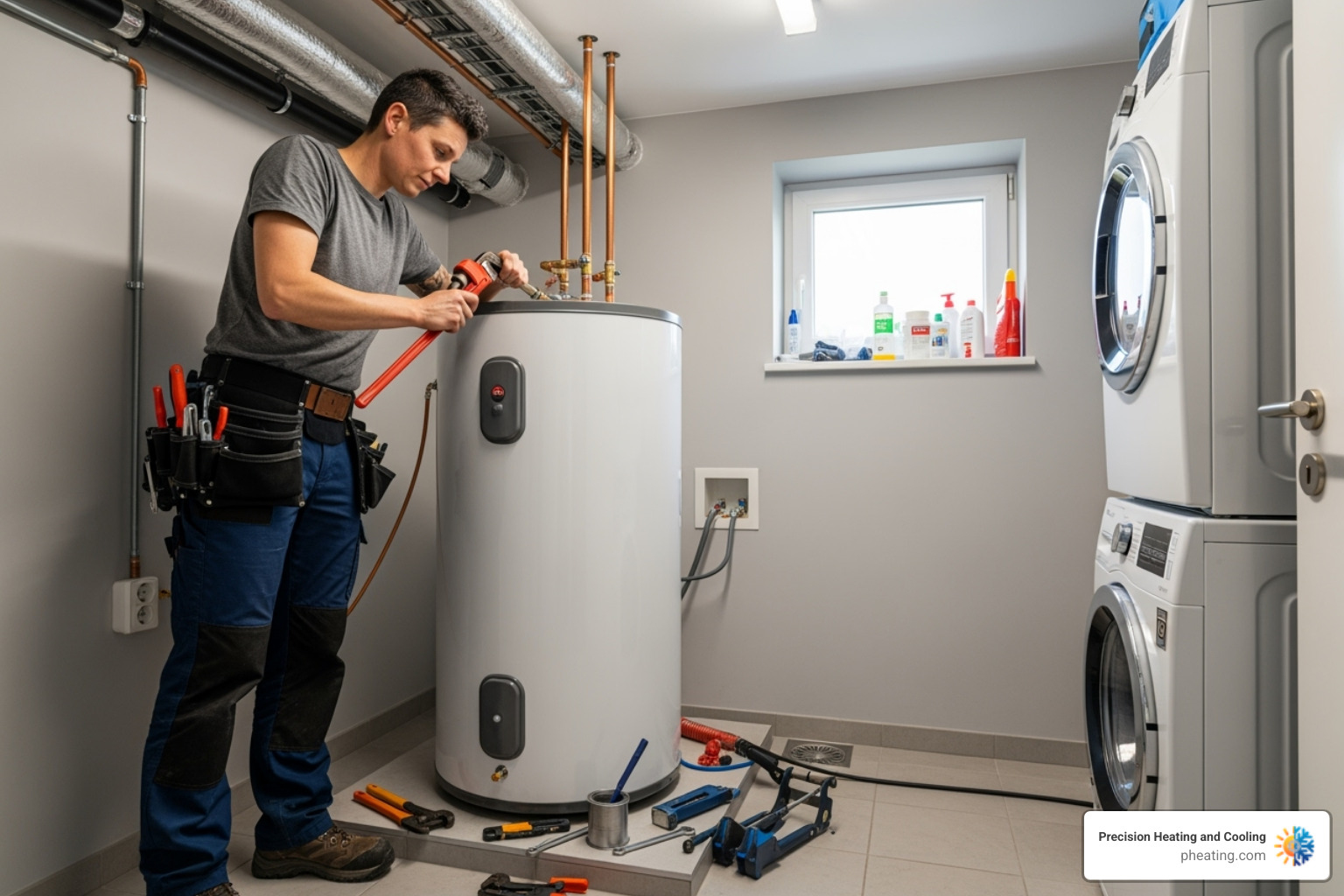

Professional installation is crucial. HPWHs have specific requirements for electrical connections (120V or 240V), plumbing, condensate drainage, and space that differ from traditional units. A qualified contractor ensures the installation meets all local building codes and safety standards.

When considering an installer, we recommend:

• Requesting cost estimates in writing.
• Asking for references from previous HPWH installations.
• Checking their reputation with organizations like the Better Business Bureau.
• Confirming they will obtain all necessary local permits.

Once installed, these routine maintenance tasks will keep your HPWH running efficiently:

• Air Filter Cleaning: The HPWH has an air filter that needs regular cleaning or replacement (every few months) to ensure proper airflow and efficiency.
• Anode Rod Check: Like traditional tank heaters, an HPWH has an anode rod to prevent tank corrosion. It should be inspected every 3-5 years and replaced if needed.
• Condensate Line Check: Ensure the condensate drain line remains clear of blockages.
• Professional Servicing: We recommend periodic professional check-ups to ensure all components are functioning correctly.

Knowing the signs that your water heater might need attention can save you headaches and money down the line: Learn the signs your water heater needs repair.

Addressing Potential HPWH Drawbacks

While HPWHs have many benefits, it's important to understand a few characteristics that require planning:

1. Noise Levels: An HPWH contains a fan and compressor, so it produces a low hum. A typical unit operates around 48-53 dBA, which is quieter than a normal conversation (60 dBA) but louder than a modern refrigerator (35-40 dBA). Placing the unit in a garage, basement, or utility closet helps mitigate any noise concerns. You can use tools like the Measure noise levels with the NIOSH SLM app to check levels yourself.

2. Cooling the Installation Space: As it works, an HPWH cools the surrounding air. In the hot summers of the Central Valley, this can be a welcome benefit in a garage or basement. However, this effect might be undesirable if the unit is in a heated living space. This is why we typically recommend installation in unconditioned areas.

3. Recovery Speed: The recovery speed in heat pump mode can be slower than a traditional heater. However, this is addressed by the "hybrid" design. The backup electric resistance elements kick in to meet high demand, ensuring you get high efficiency for daily use and rapid recovery when you need it.

Frequently Asked Questions about Heat Pump Water Heaters

After helping hundreds of Bay Area homeowners upgrade to HPWH systems, we've noticed the same questions come up time and time again. Let's tackle the big ones that are probably on your mind too.

How much more efficient is an HPWH than a standard electric water heater?

An HPWH is dramatically more efficient. While a standard electric water heater is about 90% efficient (a UEF rating of ~0.9), an HPWH is 2-4 times more efficient because it moves existing heat instead of creating new heat.

ENERGY STAR certified HPWHs can have UEF ratings of 3.7 or higher. This means for every dollar you spend on hot water with a traditional unit, you could spend as little as 25-50 cents with an HPWH, leading to significant long-term savings.

Can an HPWH work in my cold garage during the winter?

Yes, it can. HPWHs perform best in temperatures between 40-90°F. If the temperature in your garage drops below 40°F, the heat pump becomes less efficient.

This is where the 'hybrid' design is essential. The unit will automatically switch to its backup electric resistance heating elements to ensure you always have hot water. While it uses more electricity in this mode, the winters in the Bay Area and Central Valley are typically mild enough that the unit will operate in its high-efficiency heat pump mode for most of the year, still providing significant annual savings.

What maintenance does an HPWH require?

HPWH maintenance is straightforward and key to longevity and efficiency. The main tasks include:

• Air Filter Cleaning: The air filter should be cleaned or replaced every few months to ensure proper airflow and efficiency.
• Anode Rod Inspection: Like a traditional water heater, the anode rod protects the tank from corrosion. It should be inspected every few years by a professional and replaced if necessary to extend the tank's life.
• Condensate Line Check: Since the unit dehumidifies, it produces condensate. Periodically check that the drain line is clear to prevent backups.

We also recommend professional servicing every few years to check all components and ensure your system continues to operate reliably.

Conclusion: Is a Heat Pump Water Heater Right for Your Home?

As we've explored, heat pump water heaters are changing how homeowners think about hot water. With their clever 'refrigerator in reverse' design and significant energy savings, HPWHs represent the future of water heating.

With efficiency ratings up to four times higher than traditional models and potential savings of thousands of dollars, the financial benefits are clear. But the advantages don't stop there.

Choosing an HPWH is a smart investment in your home's future. You accept energy independence, contribute to a cleaner environment, and gain the bonus of free cooling and dehumidification—a perfect fit for California's climate.

For homeowners throughout the San Jose Bay Area and Central Valley, the mild climate creates ideal conditions for HPWH operation, maximizing your energy savings year-round.

For over two decades, Precision Heating and Cooling has helped families upgrade their homes. We know choosing a new water heater is a big decision. We provide expert consultation and professional installation to meet all local codes and maximize your system's performance, ensuring a smooth transition to this efficient technology.

Here's what you can count on when you choose an HPWH:

• High Efficiency: Multiple times more efficient than traditional electric water heaters
• Long-Term Savings: Quick payback period with substantial lifetime savings
• Eco-Friendly: Dramatically reduced carbon footprint and environmental impact

With the right planning and professional installation, an HPWH will provide years of reliable, efficient service.
