The Science of Warmth: A Deep Dive into Heat Pump Water Heater Operation

Understanding Heat Pump Water Heater Technology

When considering a water heating upgrade, many homeowners in the San Jose Bay Area and Central Valley ask, heat pump water heater how it works? Unlike conventional models that create heat via combustion or electric resistance, a heat pump water heater moves heat from the surrounding air into the water tank. This process, similar to a refrigerator in reverse, makes it up to three times more energy-efficient.

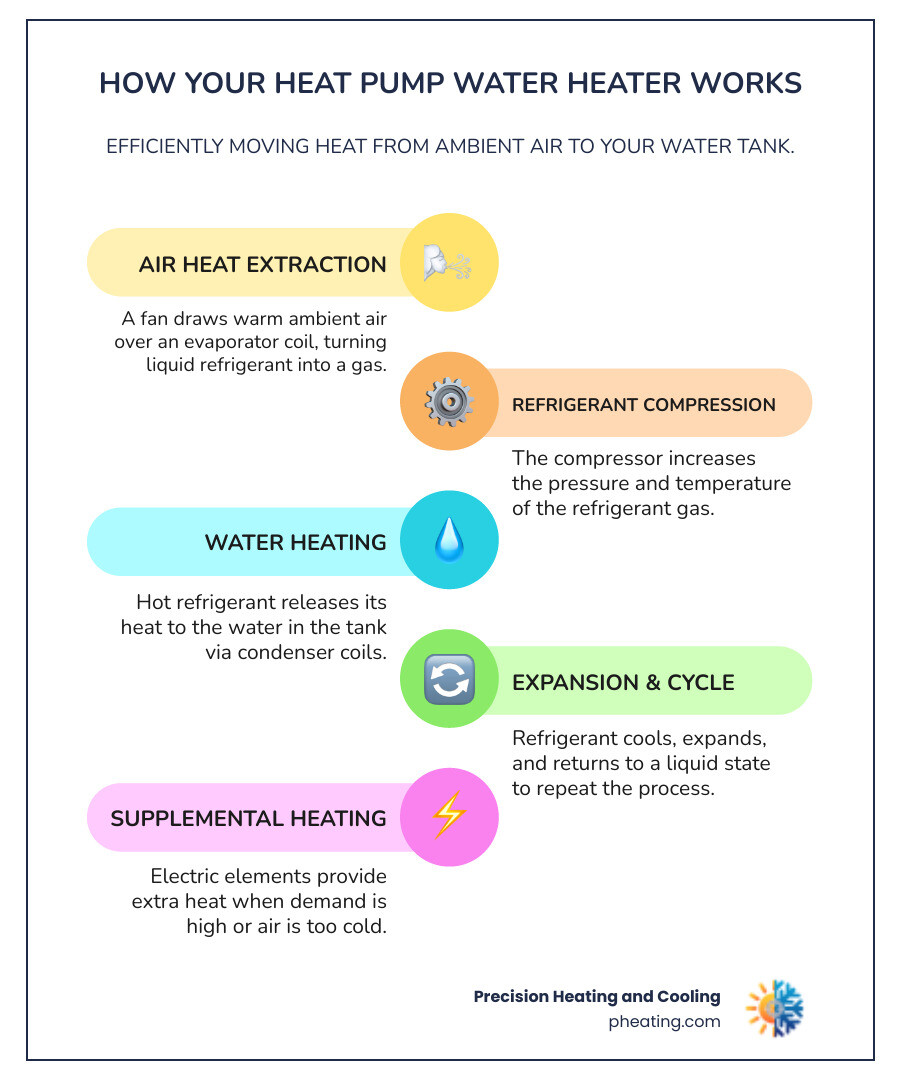

How a Heat Pump Water Heater Works:

1. Heat Extraction: A fan pulls ambient air across an evaporator coil with cold refrigerant.
2. Compression: The refrigerant, now warmer, is compressed, significantly raising its temperature.
3. Heat Transfer: Hot refrigerant flows through condenser coils around or in the tank, heating the water.
4. Expansion & Repeat: The refrigerant cools, expands, and returns to the evaporator to repeat the cycle.
5. Backup Support: Electric resistance elements provide supplemental heat during high demand or cold weather.

This process explains why heat pump models use far less electricity. They harness ambient heat energy—even in spaces as cool as 40°F—making them perfect for garages and basements. As a bonus, they cool and dehumidify the surrounding air, a welcome benefit in warmer months.

Whether you're exploring heat pump options for your home or ready to upgrade, Precision Heating and Cooling can guide you. Contact us today for a water heater consultation.

Our team has helped countless Bay Area homeowners understand heat pump water heater how it works and why it's a smart upgrade for energy savings. We are passionate about finding the right equipment and ensuring proper installation, and we're here to break down this technology in simple terms.

Basic heat pump water heater how it works glossary:

• hot water tank installation
• bay area water heaters
• emergency water heater service

How a Heat Pump Water Heater Works: Moving Heat, Not Making It

A surprising fact about heat pump water heater how it works is that it doesn't create heat—it moves existing heat from the surrounding air into the water tank. This process is like a refrigerator in reverse, but for heating water. This key difference makes them incredibly efficient, delivering two to three times more hot water per unit of electricity than standard electric models.

As a bonus, the unit cools and dehumidifies the air around it, making spaces like a warm garage in Sunnyvale or a humid basement in Clovis more comfortable.

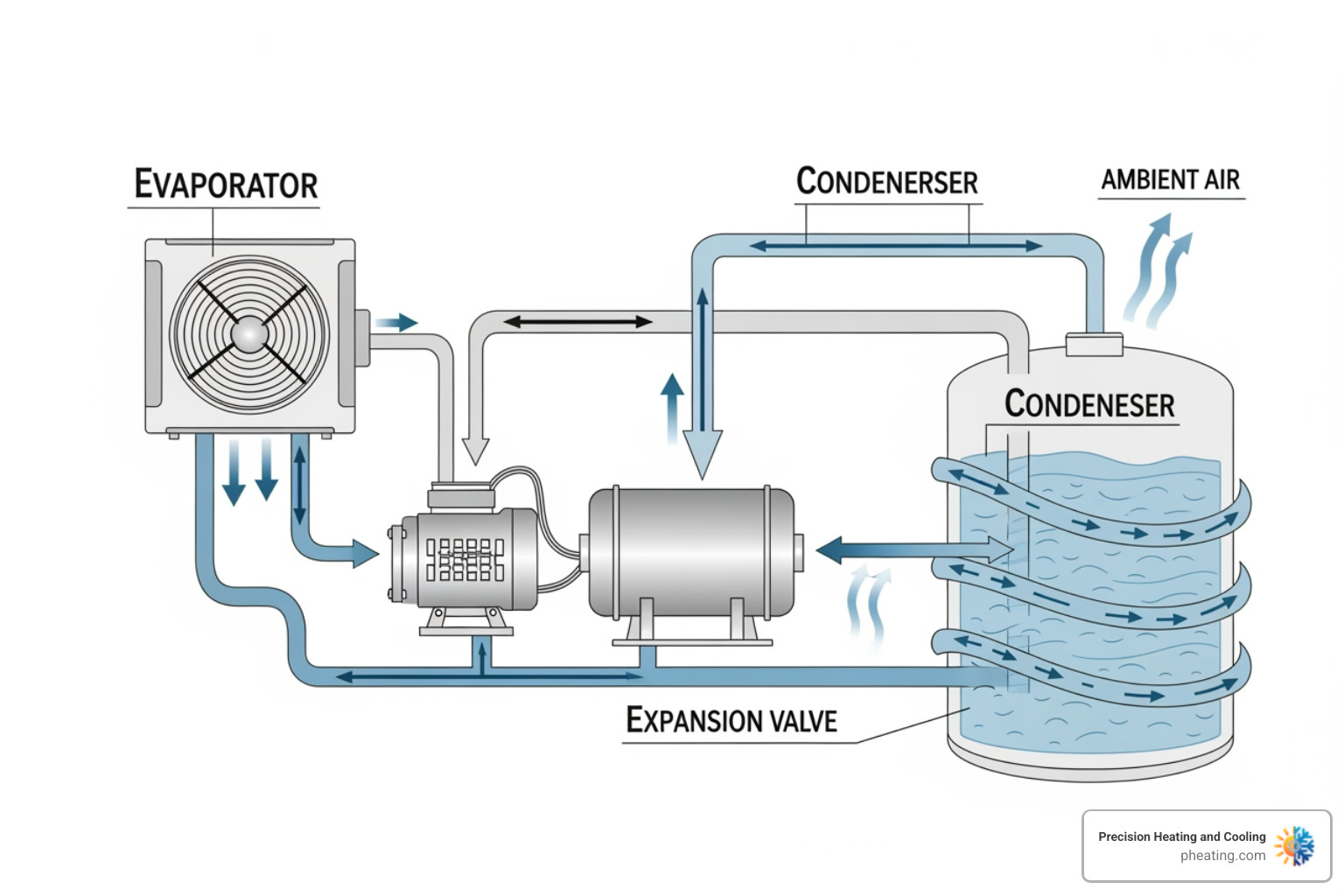

The Refrigeration Cycle Explained

Understanding heat pump water heater how it works is about understanding the refrigeration cycle:

1. Heat Absorption: A fan pulls ambient air across an evaporator coil. The cold refrigerant inside absorbs heat from the air, turning into a warm, low-pressure gas.
2. Compression: A compressor pressurizes this gas, significantly increasing its temperature, much like a bicycle pump gets hot during use.
3. Heat Transfer: The now superheated refrigerant flows through condenser coils wrapped around the water tank, releasing its heat into the water and condensing back into a liquid.
4. Expansion: The refrigerant passes through an expansion valve, which rapidly cools it by lowering its pressure. It then returns to the evaporator to start the cycle again.

This continuous loop efficiently transfers heat from the air to your water. To learn how this technology applies to whole-home systems, see our guide on Heat Pumps.

Conventional vs. Heat Pump: A Fundamental Difference

The core difference is heat generation versus heat movement. Traditional electric heaters use toaster-like elements, and gas heaters burn fuel to create heat. Both are energy-intensive.

A heat pump water heater simply relocates existing heat. This is why its Uniform Energy Factor (UEF) can be 3.0 to 4.0, while a conventional electric heater's UEF is typically 0.6 to 0.95. A higher UEF means it delivers far more energy as hot water than the electricity it consumes. By moving heat instead of making it, these systems drastically cut energy use without sacrificing comfort, making them a smart upgrade for Bay Area and Central Valley homeowners.

Anatomy of a Modern Water Heater: Components and Types

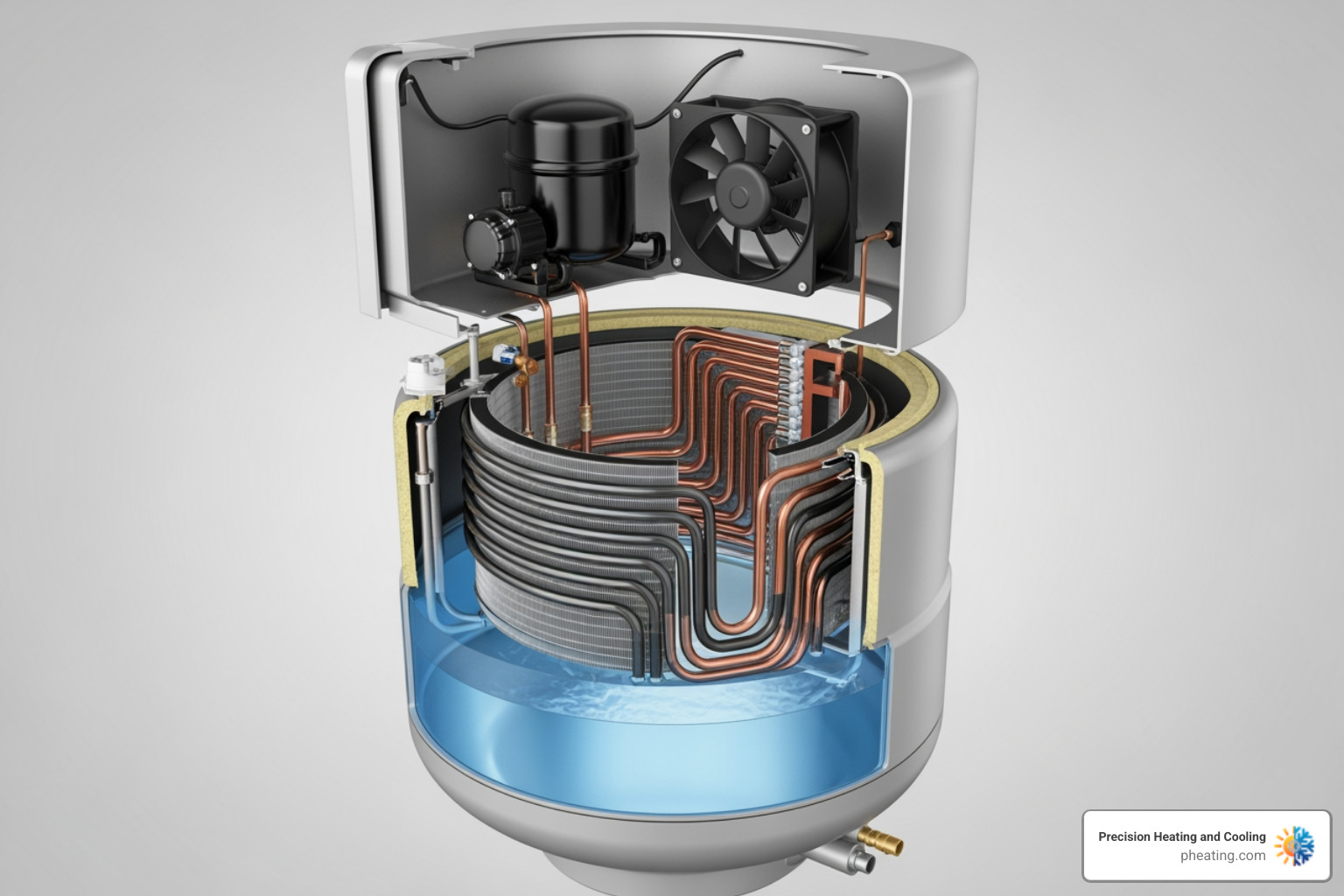

To understand heat pump water heater how it works internally, it helps to look at its components. A heat pump water heater combines a heat pump unit on top with an insulated storage tank below. This sophisticated system is revolutionizing home water heating in San Jose, Sunnyvale, and beyond.

Key Components of a Heat Pump Water Heater and How It Works

The heat pump unit houses the core components:

• Evaporator and Fan: Draw in ambient air to extract thermal energy.
• Compressor: The powerhouse that pressurizes the refrigerant to create high temperatures.
• Condenser Coils: Wrap around or sit inside the tank to transfer heat into the water.

The insulated storage tank is designed to minimize heat loss. For practicality, modern units include backup heating elements (electric resistance) that activate during high demand, ensuring you never run out of hot water. Other key parts include a control panel for managing modes, a protective air filter, a condensate drain for removed moisture, a sacrificial anode rod to prevent rust, and a temperature and pressure relief valve for safety. For issues with these parts, we offer expert Heat Pump Repair Santa Clara CA services.

Integrated vs. Split-System Models

You'll find two main configurations:

• Integrated Units: These all-in-one models have the heat pump directly on top of the tank. They are straightforward to install, often fitting in the same space as an old electric water heater, and are popular in our service areas.
• Split-System Models: These separate the heat pump from the tank. The heat pump can be placed outdoors or in a mechanical room, offering installation flexibility and reducing indoor noise. This is ideal for homes with tight spaces or for homeowners who prefer the operational noise to be outside.

Understanding Hybrid Systems and Operating Modes

Most modern heat pump water heaters are hybrid systems, combining efficient heat pump technology with reliable electric resistance backup. This gives you the best of both worlds, controlled through several operating modes:

• Hybrid/Auto Mode: The default setting for most families. It prioritizes the heat pump for efficiency but uses electric backup when demand spikes.
• Efficiency/Economy Mode: Uses only the heat pump for maximum energy savings. Recovery is slower, but utility bills are lower.
• Electric/High-Demand Mode: Operates like a conventional electric heater, using only the resistance elements for the fastest water heating.
• Vacation Mode: Lowers the tank temperature to save energy while you're away, preventing bacterial growth without wasting power.

This flexibility allows you to adapt the system to your lifestyle, making it a practical investment for any Bay Area home.

Open uping Superior Efficiency and Environmental Benefits

When homeowners ask about heat pump water heater how it works and why they should switch, the answer is twofold: remarkable efficiency and significant environmental benefits. This technology transforms both utility bills and our community's carbon footprint.

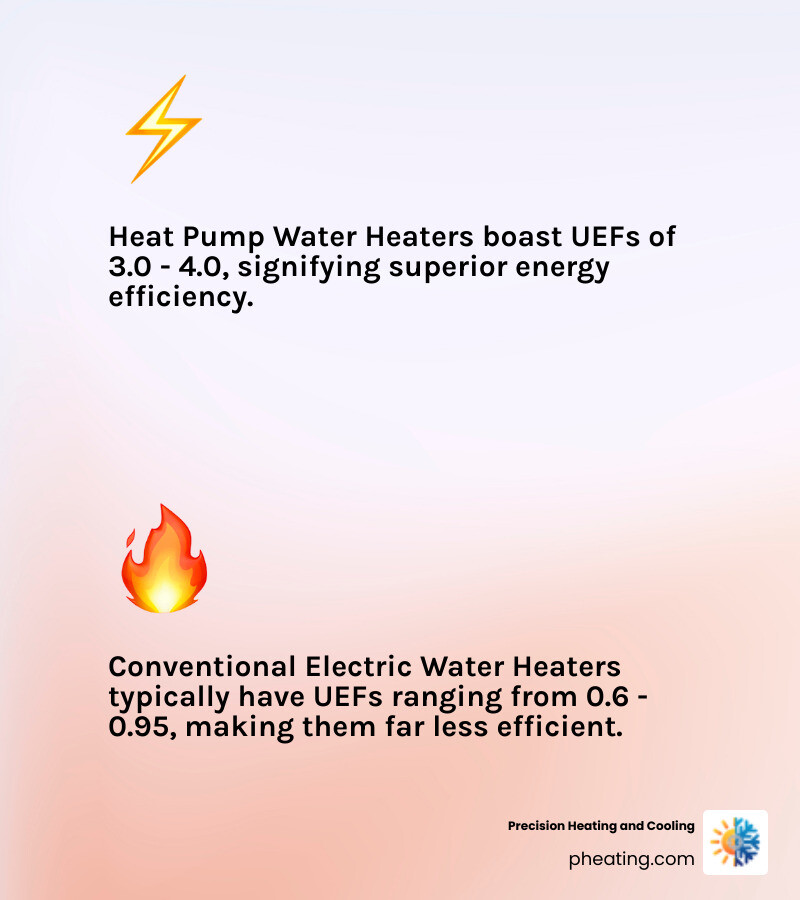

The numbers are impressive. Conventional electric water heaters have UEF ratings of 0.6-0.95, while heat pump water heaters (HPWHs) score between 3.0 and 4.0. This means an HPWH delivers three to four times more hot water energy than the electricity it consumes, leading to direct savings.

Understanding UEF and First Hour Rating (FHR)

Two key metrics help you choose the right water heater:

• Uniform Energy Factor (UEF): This is the modern standard for efficiency. A higher UEF means less energy is wasted. The high UEF of an HPWH is what makes such a big dent in your energy consumption.
• First Hour Rating (FHR): This tells you how many gallons of hot water the unit can deliver in one hour. FHR is critical for sizing a system to meet your family's peak demand, ensuring you don't run out of hot water during busy mornings.

ENERGY STAR® certification signifies a high-quality, efficient unit that meets strict performance standards. Our team at Precision Heating and Cooling considers both UEF and FHR to recommend the perfect system, a core part of our Bay Area Heat Pump approach.

The Eco-Friendly Advantage of Heat Pump Technology

Beyond savings, HPWHs offer powerful environmental benefits:

• Reduced Greenhouse Gas Emissions: By moving heat instead of burning fuel, an HPWH can cut a household's greenhouse gas emissions by about one ton per year.
• Lower Energy Demand: Using up to 70% less energy than standard models, HPWHs reduce strain on the regional power grid, especially during peak hours.
• Grid-Friendly Technology: Many new models have smart controls that can shift operation to off-peak hours, helping to stabilize the grid.
• Dehumidification Benefits: As the unit works, it removes moisture from the air, improving indoor air quality and comfort in damp basements or garages—a welcome perk for many homeowners.

Switching to a heat pump water heater is a choice that benefits both your household and the environment.

Key Considerations for Installation and Maintenance

While the benefits of a heat pump water heater are clear, proper installation and care are crucial for maximizing performance. Understanding heat pump water heater how it works in your specific home environment is key to achieving impressive energy savings.

Unlike a conventional tank, an HPWH needs the right space and setup. Once installed correctly, however, it's one of the most reliable and efficient systems in your home.

Sizing and Locating Your Heat Pump Water Heater and How It Works

Proper sizing and location are the foundation of a successful installation.

• Sizing: We focus on your First Hour Rating (FHR) needs—how much hot water your family uses during its busiest hour—to select the right tank size (typically 50-80 gallons).

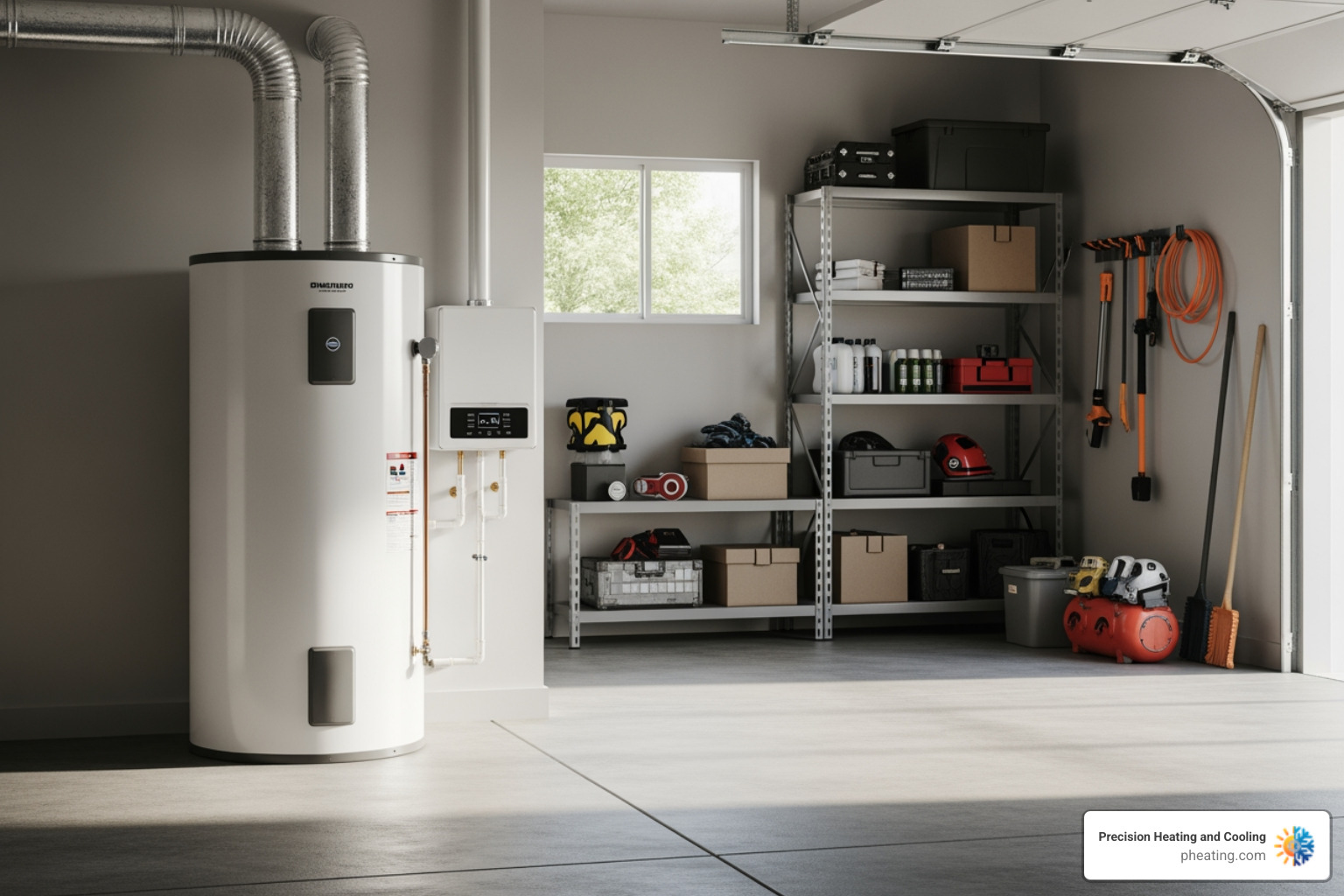

• Location: HPWHs work best in ambient temperatures between 40°F and 90°F, making garages, basements, and utility rooms in our California service areas ideal.
• Air Space: The unit needs about 1,000 cubic feet of air space (a 10x12 foot room) to operate efficiently. Smaller spaces require ventilation to prevent the unit from over-cooling the room and losing efficiency.
• Noise: The fan and compressor create a low hum, similar to a refrigerator. We help you choose a location where this won't be a disturbance.
• Drainage & Electrical: A drain is needed for condensate, and the unit requires a 240-volt circuit.

Our team provides professional Heat Pump Installation San Jose CA services to ensure your system is set up for optimal performance. Learn more in our guide on Heat Pump Installation for Your Home.

Routine Heat Pump Maintenance Palo Alto CA for Longevity

Simple, regular maintenance protects your investment and ensures longevity.

• Clean the Air Filter: Every few months, clean or replace the filter to maintain proper airflow and efficiency. A clogged filter forces the unit to work harder.
• Check the Condensate Drain: Periodically ensure the drain line is clear of blockages to prevent water backup.
• Inspect the Anode Rod: This rod protects your tank from corrosion. Have it inspected annually and replaced when worn to extend the tank's life.
• Flush the Tank: Once or twice a year, flush the tank to remove sediment buildup, which can reduce efficiency.
• Schedule Professional Tune-ups: An annual check-up from our technicians ensures all components are working correctly, catching small issues before they become major problems. This is key to the Benefits of Regular Heat Pump Maintenance.

A well-maintained HPWH can last 10-15 years, providing consistent savings and comfort.

Frequently Asked Questions about Heat Pump Water Heaters

We've installed countless heat pump water heaters throughout the Bay Area and Central Valley, and homeowners always have thoughtful questions. Here are the answers to the ones we hear most often.

Will I have enough hot water with a heat pump water heater?

Yes, with proper sizing. We focus on the First Hour Rating (FHR) to match the unit to your family's peak demand. This ensures you have enough hot water when you need it most.

Furthermore, the hybrid design of most HPWHs includes electric resistance backup elements. These automatically turn on during periods of high demand, so you get the everyday efficiency of a heat pump with the on-demand power of a traditional heater. You won't have to worry about running out of hot water. A thermostatic mixing valve can also be installed to effectively increase your hot water capacity.

Can heat pump water heaters work in colder climates?

Yes. While they are ideal for the moderate climates in the Bay Area and Central Valley, they are designed to handle cooler conditions. Most HPWHs operate efficiently in ambient temperatures between 40°F and 90°F.

If the temperature in an unconditioned space like a garage drops below 40°F, the system automatically switches to its more powerful hybrid or electric mode to ensure consistent hot water. For regions with colder winters, split-system models with an outdoor unit can extract heat from air as cold as -25°F, though this is rarely a concern for our local customers.

What happens to a heat pump water heater during a power outage?

Like any electric appliance, an HPWH cannot heat new water during a power outage. However, the tank is well-insulated and will keep the stored hot water warm for several hours, allowing you to use it for essential needs.

Once power is restored, the unit will automatically restart and resume normal operation. Most models have memory functions that retain your settings, so no reprogramming is needed.

Conclusion

Now that you understand heat pump water heater how it works, you can see why it's a major leap forward for home water heating. By moving existing warmth instead of creating it, these systems can cut water heating costs by more than half while significantly reducing your home's environmental impact. You also gain the benefit of a dehumidified space and flexible operating modes to match your family's needs.

At Precision Heating and Cooling, we have over two decades of experience helping families throughout the San Jose Bay Area and Central Valley make smart home comfort decisions. Whether you're in Cupertino, Los Gatos, Clovis, Palo Alto, Santa Clara, Sunnyvale, or Hanford, our team provides expert installation and service to ensure your system performs flawlessly for years.

We understand this is a significant upgrade, which is why we offer competitive pricing and flexible payment options. Our commitment continues long after installation with reliable maintenance and service.

Ready to upgrade your home's efficiency? Explore your options for water heater replacement in San Jose, CA. Let's find the perfect heat pump water heater for your home.
